Silver / Copper Phos Braze Alloys

Meta-Braze™ 284 Foil for Electrical Applications

Meta-Braze™ 284 foil is available from stock and is suitable for electrical engineering applications such as electric motors, switchgear. electrical contacts and lightening conductors.

Product Uses and Applications

The Meta-Braze silver / copper phosphorus product range provides a highly reliable solution for flux-less brazing in HVAC&R and electrical engineering applications. Brazing engineers have to be confident in the quality of the braze rod they are using every time they make a joint. This is particularly true for flux-less brazing of copper pipes and tubes for refrigeration, air-conditioning and medical gas pipework. Meta-Braze silver / copper phosphorus brazing alloys can be relied upon to flow consistently every time.

Key ProductsAgCuPOtherMelting Range °CEN1044:1999ISO 17672:2016Product Info

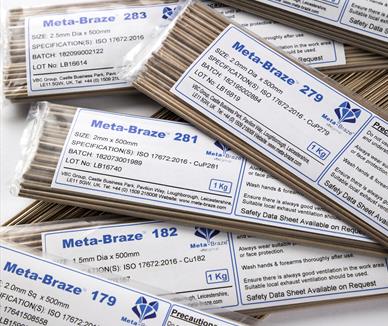

Silver Copper Phos Brazing Alloys
Meta-Braze 28618757-645CP101CuP 286View product info

Meta-Braze 286

Meta-Braze 286 is the eutectic composition for Ag-Cu-P and provides a low-melting, free-flowing alloy. The uses for this product are however limited.

Standard Forms

  • rods
  • wire
  • rings

Special Forms

  • braze-paste
×
Meta-Braze 28415805-645-800CP102CuP 284View product info

Meta-Braze 284

Meta-Braze 284 is commonly used in electrical engineering and applications where electrical conductive connections need to be made. It can be manufactured as a foil and in preformed shapes which are ideal for this type of job.

Standard Forms

  • rods
  • wire
  • strip
  • foil
  • rings
  • preform

Special Forms

  • braze-paste

Downloads

×
Meta-Braze 283686.757.25-645-720-CuP283View product info

Meta-Braze 283

Meta-Braze 283 is a free flowing alloy which is suitable for tight fitting joint gaps. This alloy isn’t the most ductile in the group and should be used where a high level of ductility in the brazed joint is not required.

Product Forms

  • rods
  • strip

Downloads

×
Meta-Braze 2815896-645-815CP104CuP 281View product info

Meta-Braze 281

Meta-Braze 281 provides a good balance between the considerations of the cost, ductility and the flow of the brazing alloy. It is very commonly specified in refrigerated pipework applications, particularly in supermarket installations and is suitable for brazing K65 copper tube for carbon dioxide refrigerated systems.

It is now possible to provide a modified version of this alloy in foil form.

Standard Forms

  • rods
  • wire
  • strip
  • rings
  • braze-paste

Special Forms

  • foil

Downloads

×
Meta-Braze 279291.76.3-645-825CP105CuP 279View product info

Meta-Braze 279

Meta-Braze 279 contains 2% silver, as such it provides a lower cost product than the other silver copper phos alloys whilst having greater ductility than copper phos alloys.

It is now possible to provide a modified version of this alloy in foil form.

Standard Forms

  • rods
  • wire
  • rings
  • foil
  • strip

Special Forms

  • foil

Downloads

×
Copper Phos Brazing Alloys
Meta-Braze 179-93.86.2-710-890CP203CuP 179View product info

Meta-Braze 179

Meta-Braze 179 is a standard copper phos brazing rod used for refrigeration and air-conditioning pipework. It is suitable for typical HVACR type joints where there is often a need to fill a wide joint gap and control the alloy flow when molten.

Product Forms

  • rods
  • wire
  • rings

Downloads

×
Meta-Braze 182-92.27.8-710-770CP201CuP 182View product info

Meta-Braze 182

Meta-Braze 182 is a copper phos brazing rod which offers good flow but poor ductility characteristics, meaning that it isn't the first choice for brazing HVACR tubes and fittings..

Product Forms

  • rods
  • wire
  • strip
×
Meta-Braze 386-86.26.87 Sn640-680CP302CuP 386View product info

Meta-Braze 386

Meta-Braze 386 is a different type of alloy to the others in this group because it contains tin. It is very free flowing and forms smooth neat fillets but is also not especially ductile. It requires a flux and is suitable for use where there is a need to join copper alloy parts which need a very smooth looking joint with a narrow joint gap.

Product Forms

  • rods
  • braze-paste
×
Meta-Braze 389-9262 Sb 690-825CP301CuP 389View product info

Meta-Braze 389

Meta-Braze 389 this niche alloy contains antimony and was developed for brazing the seams for domestic copper boilers.

Product Forms

  • rods
×
