Copper Based Furnace Brazing Alloys

Need to optimise your copper brazing?

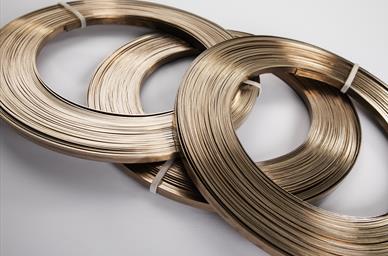

VBC Group offer wires, foils, strips, rings, washers, powders and pastes in copper based brazing alloys.

Request more info

Product Uses and Applications

Copper can be used as a filler metal in its own right and can be supplied in a variety of forms for use in aerospace, automotive and electronic applications.

Meta-Braze Cu186 and Meta-Braze Cu 092 contain nickel and tin respectively and will fill wider joint gaps than copper. Meta-Braze Cu 595 and the similar alloy Meta-Braze Cu 087 are used for brazing tungsten carbide tools in a furnace environment.

Key ProductsCuNiMnSnOtherMelting Range °CEN1044:1999ISO 17672:2016Product Info
Meta-Braze Cu 11099.9----1085CU101Cu 110View product info

Meta-Braze Cu 110

Meta-Braze Cu 110 is a 99.9% pure form of copper which can be used as a filler metal in its own right and can be supplied in a variety of forms for use in aerospace, automotive and electronic applications.

Product Forms

  • powder
  • braze-paste
  • rings
  • foil
  • preform
  • wire
  • washers
  • strip
×
Meta-Braze Cu 10299.95----1085CU102Cu 102View product info

Meta-Braze Cu 102

Meta-Braze Cu 102 is a 99.95% pure form of copper which can be used as a filler metal in its own right and can be supplied in a variety of forms for use in aerospace, automotive and electronic applications.

Product Forms

  • rods
  • strip
  • wire
  • rings
  • powder
  • braze-paste
  • foil
  • preform
×
Meta-Braze Cu 186973--0.03 B1085-1100CU105Cu 186View product info

Meta-Braze Cu 186

Meta-Braze Cu 186 – a versatile alloy that contains nickel and a controlled addition of boron. Used for brazing stainless steel and for filling gaps ranging from an interference fit up to 0.5mm.

Product Forms

  • rods
  • strip
  • wire
  • rings
  • powder
  • braze-paste
  • foil
  • preform

Downloads

×
Meta-Braze Cu 09291.75--80.25 P882-1027--View product info

Meta-Braze Cu 092

Meta-Braze Cu 092 – is a copper-tin alloy which will fill wider joint gaps than pure copper. This alloy is used for brazing mild steel automotive and refrigeration components.

Product Forms

  • rods
  • strip
  • wire
  • rings
  • powder
  • braze-paste
  • foil
  • preform
×
Meta-Braze Cu 59584.253.2512.5--965-995-Cu 595View product info

Meta-Braze Cu 595

Meta-Braze Cu 595 and the similar alloy Meta-Braze Cu 087 are predominantly used for brazing tungsten carbide tools in a reducing atmosphere furnace.

Product Forms

  • wire
  • braze-paste
×
Meta-Braze Cu 08786.852.1511--965-995--View product info

Meta-Braze Cu 087

Meta-Braze Cu 087 is a special copper based brazing alloy. It contains manganese and nickel which have been shown to improve wetting of the filler metal on tungsten carbide. This alloy is has been used to manufacture professional grade masonry drills and associated tools for construction work. It can be brazed in a reducing atmosphere provided the dew point is better than -40°C.

Product Forms

  • strip
  • wire
  • rings
  • powder
  • braze-paste
  • foil
  • preform
×
