We understand that flux behaviour is important to anyone brazing regularly. Why not test out one of our fluxes?
The use of a specially formulated high temperature brazing flux is necessary for brazing operations using specialised copper based brazing alloys when brazing in air. Typical applications include induction brazing of tungsten carbide tools and wear parts.
The flux residues from this type of flux need to be removed mechanically or chemically and this factor should be considered when selecting the brazing method.
| Key Products | Working Range °C | EN1045 | Product Info | Key Points |
|---|---|---|---|---|
| High Temperature Brazing Flux | ||||

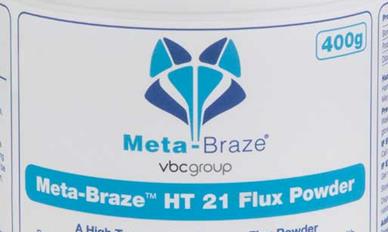

| Meta-Braze™ HT 21 Flux Powder | 750-1200 | FH21 | ViewMeta-Braze™ HT 21 Flux PowderMeta-Braze™ HT 21 Flux Powder is suitable for use on steel and tungsten carbide components in conjunction with a specialised high temperature copper brazing alloy such as Meta-Braze™ Cu 052, Meta-Braze™ Cu 058 or Meta-Braze™ Cu 067. Its residues are insoluble and should be removed by mechanical means such as grit blasting or grinding. Downloads× | A general purpose brazing flux powder for copper brazing alloys |
| Meta-Braze™ HT 21 Flux Paste | 750-1200 | FH21 | ViewMeta-Braze™ HT 21 Flux PasteMeta-Braze™ HT 21 Flux Paste is suitable for use on steel and tungsten carbide components in conjunction with a specialised high temperature copper brazing alloy. Its residues are insoluble and should be removed by mechanical means such as grit blasting or grinding. Downloads× | A general purpose brazing flux paste for copper brazing alloys |
| Medium Temperature Silver Brazing Flux | ||||
| Meta-Braze™ MT 22 Flux Powder | 750-1000 | FH21 | ViewMeta-Braze™ MT 22 Flux PowderMeta-Braze™ MT 22 Flux Powder is suitable for use on steel components in conjunction with a brass brazing or bronze welding alloy such as Meta-Braze™ Cu 470a or Meta-Braze™ Cu 670. Its residues are insoluble and should be removed by mechanical means such as grit blasting or grinding. Downloads× | A general purpose brazing flux powder for brass brazing/bronze welding |
| Meta-Braze™ MT 21 Flux Powder | 600-900 | FH10 | ViewMeta-Braze™ MT 21 Flux PowderMeta-Braze™ MT 21 Flux Powder is suitable for use where prolonged heating may be required or on metals such as stainless steel where overheating may occur. Its residues are insoluble and should be removed by soaking in warm 10% sodium hydroxide solution. Downloads× | A silver brazing flux powder for low silver content alloys and prolonged heating |
| Meta-Braze™ MT 21 Flux Paste | 600-900 | FH10 | ViewMeta-Braze™ MT 21 Flux PasteMeta-Braze™ MT 21 Flux Paste is suitable for use where prolonged heating may be required or on metals such as stainless steel where overheating may occur. Its residues are insoluble and should be removed by soaking in warm 10% sodium hydroxide solution.× | A silver brazing flux paste for low silver content alloys and prolonged heating |
