Meta-Braze™ BTi-1
Meta-Braze™ BTi-1 – is a brazing filler in composite form containing titanium, copper and nickel. It was developed for brazing of titanium alloys as well as specific ceramic / non-metallic surfaces.
Titanium Brazing Alloys
Brazing Titanium?
This is a highly specialised and developing area. Please speak to our technical team for advice on our products and how to use them.
Product Uses and Applications
Meta-Braze titanium brazing alloys are designed for use on titanium alloys and superalloys.
Typical applications include space and aerospace components where the physical properties of titanium alloys are an advantage.Brazing alloy selection and determining the heating parameters are critical factors in ensuring that these properties are maintained during brazing.
| Key Products | Trade Name | Ti | Ni | Cu | Zr | Other | Melting Range °C | AWS A5.8 | Product Info |
|---|---|---|---|---|---|---|---|---|---|
| Meta-Braze™ BTi-1 | Ticuni™ | 70 | 15 | 15 | - | 0.3% max | 910-960 | BTi-1 | View |
| Meta-Braze™ BTi-2 | Ticuni™ 60 | 60 | 25 | 15 | - | - | 890-940 | BTi-2 | ViewMeta-Braze™ BTi-2Meta-Braze™ BTi-2 is a brazing filler in composite form containing titanium, copper and nickel. It has been developed for brazing of titanium alloys as well as specific ceramic / non-metallic surfaces. This product melts over a slightly lower temperature than Meta-Braze™ BTi-1. Product Forms× |
| Meta-Braze™ BTi-3 | TicuniZr™ 38 | 37.5 | 10 | 15 | 37.5 | - | 835-850 | BTi-3 | ViewMeta-Braze™ BTi-3Meta-Braze™ BTi-3 is suitable for brazing of titanium alloys where it exhibits low erosion of the parent metals. It melts below 850°C enabling brazing to be carried out at the temperatures below beta-transus points of parent materials such as Ti-6Al-4V. Product Forms× |

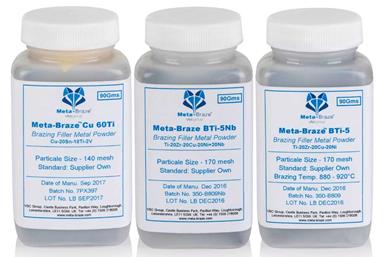

| Meta-Braze™ BTi-5 | Meta-Braze™ BTi-5 | 40 | 20 | 20 | 20 | - | 848-863 | BTi-5 | ViewMeta-Braze™ BTi-5Meta-Braze™ BTi-5 is a highly specialised brazing filler metal that can be used for brazing titanium alloys, ceramics and diamond. It has a recommended brazing temperature of 890-920°C. It is available as an amorphous foil, in a powder (-106 or -90 microns size) or as a paste. Product FormsDownloads× |
