Aluminium Brazing Alloys

Flux Cored Rings

Eliminate the need for use of a separate flux with flux cored Meta-Braze™ Al 112 (88:12 Al:Si), also available as a braze paste.

Request more info

Product Uses and Applications

Meta-Braze Al filler metals are intended for joining aluminium alloys – the 1000 series (e.g. 1100), 3000 series (e.g. 3003, 3004), 5000 series and some 6000 series alloys (eg.6061, 6031, 6951). These products are used in the manufacture of automotive components and aluminium heat exchangers.

VBC Group offer a number of Meta-Braze Advanced forms of these products that contain specially formulated fluxes in the central core of the product.

Key ProductsAlSiCuZnOtherMelting Range °CAWS A5.8EN1044:1999ISO 17672:2016Product Info
Solid Aluminium Brazing Products
Meta-Braze Al 112 (4047)8812---575-585BAISi-4AL104Al 112View product info

Meta-Braze Al 112 (4047)

Meta-Braze Al 112 – is the industry standard for joining of aluminium alloys. With the appropriate flux and careful consideration of the brazing parameters it can also be used to join aluminium to dissimilar metals such as steel or copper.

Available product forms include: Rods, rings, washers and preformed shapes, powder and paste.

Sheet is available in the following thicknesses: 0.025mm, 0.050mm, 0.075mm, 0.10mm, 0.125mm, 0.150mm, 0.20mm, 0.25mm, 0.30mm, 0.38mm, 0.5mm, 0.75mm, 1.5mm

Product Forms

  • rod
  • wire
  • rings
  • braze-paste
  • foil
  • preform
×
Meta-Braze Al 310 (4004)Bal9.75--Mg 1-2%554-596BAlSi-7 -Al 310View product info

Meta-Braze Al 310 (4004)

Meta-Braze Al 310 / Meta-Braze Al 4004 brazing alloy conforms to BAlSi-7 which contains between 1-2% magnesium. The magnesium in the brazing alloy acts as a 'getter' in the brazing cycle removing residual oxygen and moisture and enabling vacuum furnace brazing. The typical brazing range for 4004 is 588-604°C.

Meta-Braze Al 310 / Meta-Braze Al 4004 is available in foil form 365mm wide x 0.1mm thicknesses. Other foil sizes may be available subject to large minimum order sizes.

Product Forms

  • foil
  • preform
×
Meta-Braze Al 0022--98-377-385---View product info

Meta-Braze Al 002

Meta-Braze Al 002 – is a specialised soft solder for aluminium joining applications. It is widely used and can be used to join aluminium to copper.

Product Forms

  • wire
  • rings
×
Meta-Braze Advanced Flux Containing Products
Meta-Braze Advanced Flux Containing Al 1128812---575-585BAISi-4-Al 112View product info

Meta-Braze Advanced Flux Containing Al 112

Product Forms

  • wire
  • rings
  • strip
×
Meta-Braze Advanced Flux Containing Al 01322--78-441-471---View product info

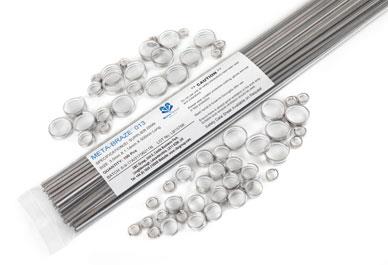

Meta-Braze Advanced Flux Containing Al 013

Meta-Braze Al 013 is principally intended for use as an aluminium repair alloy. It can be used to repair damage to aluminium heat exchangers, tubes and pipework and will join aluminium to copper. It is not recommended for production applications unless very tight process control is possible.

Product Forms

  • wire
  • rings
  • strip
×
Meta-Braze Advanced Flux Containing Al 0022--98-377-385---View product info

Meta-Braze Advanced Flux Containing Al 002

Meta-Braze Advanced Flux Containing Al 002 – is a specialised soft solder for aluminium joining applications. It is widely used in the manufacture of heat exchangers where it is employed to make aluminium to copper pipe connections.

Product Forms

  • rods
  • wire
  • rings
×
Meta-Braze Clad Aluminium Vacuum Brazing Sheet
No.7 & No.8 Clad Aluminium Brazing Sheet - 3003 Core / 4004 CladdingBal10--Mg 1-2%554-596BAlSi-7 --View product info

No.7 & No.8 Clad Aluminium Brazing Sheet - 3003 Core / 4004 Cladding

No.7 clad aluminium brazing foil has 1-side of a 3003 alloy core clad with 4004 brazing alloy. No.8 clad aluminium brazing sheet has both sides clad with 4004 brazing alloy on a 3003 alloy core.

The 4004 brazing alloy conforms to BAlSi-7 which contains between 1-2% magnesium. The magnesium in the brazing alloy acts as a 'getter' in the brazing cycle removing residual oxygen and moisture and enabling vacuum furnace brazing. The typical brazing range for 4004 clad foils is 588-604°C.

No.8 sheet is available in thicknesses between .005” to .125”

The 4004 cladding thickness varies between 15% for thinner foils of 0.24", 10% for foils of 0.025" to 0.062" to 7.5% for the thicker foils of 0.063" or more.×

No.13 & No.14 Clad Aluminium Brazing Sheet - 6951 Core / 4004 CladdingBal10--Mg 1-2%554-596BAlSi-7 --View product info

No.13 & No.14 Clad Aluminium Brazing Sheet - 6951 Core / 4004 Cladding

No.13 clad aluminium brazing foil has 1-side of a 6951 alloy core clad with 4004 brazing alloy. No.14 clad aluminium brazing sheet has both sides clad with 4004 brazing alloy on a 6951 alloy core. The aluminium alloy 6951 is widely used in aerospace applications.

4004 brazing alloy conforms to BAlSi-7 which contains between 1-2% magnesium. The magnesium in the brazing alloy acts as a 'getter' in the brazing cycle removing residual oxygen and moisture and enabling vacuum furnace brazing. The typical brazing range for 4004 clad foils is 588-604°C.

The 4004 cladding thickness varies between 15% for thinner foils of 0.24", 10% for foils of 0.025" to 0.062" to 7.5% for the thicker foils of 0.063" or more.×

Meta-Braze Clad Aluminium Brazing Sheet
No.11 & No.12 Clad Aluminium Brazing Sheet - 3003 Core / 4343 CladdingBal7.5---577-613BAlSi-2--View product info

No.11 & No.12 Clad Aluminium Brazing Sheet - 3003 Core / 4343 Cladding

No.11 clad aluminium brazing foil has 1-side of 3003 alloy, clad with 4343 brazing alloy. No.12 clad aluminium brazing sheet has both sides clad with 4343 brazing alloy on a 3003 aluminium alloy core.

The 4343 brazing alloy conforms to BAlSi-2 which contains between 6.8-8.2% Si and has no magnesium. These products can be used for aluminium brazing with an appropriate flux or with additional special measures they can be used for brazing in a vacuum furnace. Typical brazing temperature range is 593-621°C.

The 4343 cladding thickness varies between 10% for .090” and less, 5% for .091” and more.×

No.21 & No.22 Clad Aluminium Brazing Sheet - 6951 Core / 4343 CladdingBal7.5---577-613BAlSi-2--View product info

No.21 & No.22 Clad Aluminium Brazing Sheet - 6951 Core / 4343 Cladding

No.21 clad aluminium brazing foil has 1 side of a 6951 alloy core, clad with 4343 brazing alloy. No.22 clad aluminium brazing sheet has both sides clad with 4343 brazing alloy on a 6951 aluminium alloy core.

The 4343 brazing alloy conforms to BAlSi-2 which contains between 6.8-8.2% Si and has no magnesium. These products can be used for aluminium dip brazing or with additional special measures for brazing in a vacuum furnace. Typical brazing temperature range is 593-621°C.

These products are available in 36" x "72" sheets in the following thicknesses - 0.02", 0.032", 0.040", 0.050", 0.063", 0.080", 0.094", 0.125", 0.190"

The 4343 cladding thickness varies between 10% for .090” and less, 5% for .091” and more.×

No.23 & No.24 Clad Aluminium Brazing Sheet - 6951 Core / 4045 CladdingBal10--Ti 0.2%577-591BAlSi-5--View product info

No.23 & No.24 Clad Aluminium Brazing Sheet - 6951 Core / 4045 Cladding

No.23 clad aluminium brazing foil has 1 side of a 6951 alloy core, clad with 4045 brazing alloy. No.24 clad aluminium brazing sheet has both sides clad with 4045 brazing alloy on a 6951 aluminium alloy core.

The 4045 brazing alloy conforms to BAlSi-5 which contains between 9-11% Si, no magnesium and a controlled addition of titanium. These products can be used for aluminium dip brazing or with additional special measures for brazing in a vacuum furnace. Typical brazing temperature range is 588-604°C.

The 4045 cladding thickness varies between 10% for .090” and less, 5% for .091” and more.

***Consult VBC Group for availability of this product***×
