Silver Brazing Fluxes for Tungsten Carbide

Test our Fluxes

We understand that flux behaviour is important to anyone brazing regularly. Why not test out one of our fluxes? ​

Request more info

Product Uses and Applications

Special boron modified (BM) silver brazing fluxes are recommended for grades of tungsten carbide which prove difficult to wet. These fluxes have a brown (or in some cases grey) colour arising from the addition of elemental boron to the flux.

General purpose silver brazing fluxes which are white are sometimes preferred where alloy wetting isn’t an issue. This is because white fluxes tend to go clear as they approach brazing temperature allowing the joint line to be seen by the operator.

Key ProductsWorking Range °CEN1045Product InfoKey Points
Meta-Braze BM 21 Flux Powder550-800FH12View product info

Meta-Braze BM 21 Flux Powder

Meta-Braze BM 21 Flux Powder is a version of Meta-Braze LT 21 Flux Powder specially modified by the addition of boron which aids wetting and bonding on grades of tungsten carbide that are difficult to wet.Flux residues can be removed by soaking and washing in hot water (~60°C for 30mins).×

A boron-modified flux powder for tungsten carbide and PCD

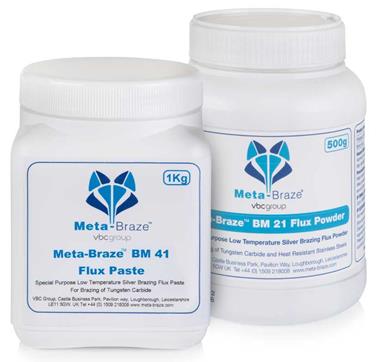

Meta-Braze BM 41 Flux Paste550-800FH12View product info

Meta-Braze BM 41 Flux Paste

Meta-Braze BM 41 Flux Paste is a specialised brown ‘boron modified’ flux which aids wetting and bonding on grades of tungsten carbide that are difficult to wet. Flux residues can be removed by soaking and washing in hot water (~60°C for 30mins).×

A boron-modified flux paste for tungsten carbide and PCD
Meta-Braze BM 81 Dispensable Flux Paste550-800FH12View product info

Meta-Braze BM 81 Dispensable Flux Paste

Meta-Braze BM 81 Dispensable Flux Paste is a specialised brown ‘boron modified’ flux which aids wetting and bonding on grades of tungsten carbide that are difficult to wet. It contains a binder system making it suitable for dispensing in automatic brazing operations. Flux residues can be removed by soaking and washing in hot water (~60°C for 30mins).×

A boron-modified dispensable flux paste for tungsten carbide and PCD
Meta-Braze LT 21 Flux Powder550-800FH10View product info

Meta-Braze LT 21 Flux Powder

Meta-Braze LT 21 Flux Powder is our standard flux powder. It has excellent fluxing characteristics when mixed into a paste and can be used for application by hot rodding techniques. Flux residues can be removed by soaking and washing in hot water (~60°C for 30mins).

Downloads

×
A general purpose silver brazing flux powder
Meta-Braze LT 41 Flux Paste550-800FH10View product info

Meta-Braze LT 41 Flux Paste

Meta-Braze LT 41 Flux Paste is a pre-mixed smooth general purpose flux paste which is suitable for a variety of silver brazing applications. Flux residues can be removed by soaking and washing in hot water (~60°C for 30mins).

Downloads

×
A general purpose silver brazing flux paste
