Meta-Braze Advanced Flux Cored Silver Brazing Alloys

Why flux separately?

Eliminate the need for use of a separate flux with flux cored Meta-Braze Advanced™ brazing rings. For the right applications they can provide the optimum amount of flux and reduce the need for lengthy washing stages to remove residues.

Request more info

Product Uses and Applications

Flux cored or filled silver brazing alloys are designed to provide handling and quality benefits in mass production of brazed components.

The built-in flux means that there is no need for a separate flux to be applied to the components prior to heating. This eliminates the fluxing step as well as reducing handling and waste.

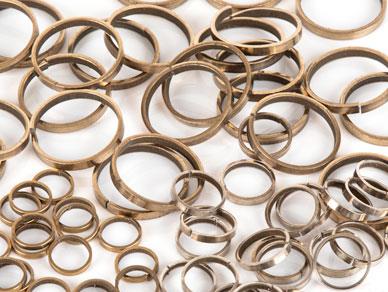

For flux cored or filled brazing rings, the added flux is released all around the joint opening durning heating to brazing temperature. This ensures the active flux is positioned where it is needed.



Key ProductsAgCuZnSnNiMelting Range °CAWS A5.8ISO 17672:2016Product Info
Meta-Braze Advanced Channel Braze 1565622175-630-655BAg-7Ag 156View product info

Meta-Braze Advanced Channel Braze 156

Meta-Braze Advanced Channel Braze 156 is a low melting temperature free-flowing brazing alloy with flux incorporated into the product, in a channel or central core. When supplied as a brazing ring, this product can be useful in achieving a highly repeatable and controlled brazing processes.

Product Forms

  • wire
  • strip
  • rings
×
Meta-Braze Advanced Channel Braze 450502028-2660-705BAg-24Ag 450View product info

Meta-Braze Advanced Channel Braze 450

Meta-Braze Advanced Channel Braze 450 is a product with flux contained in a channel or central core. Meta-Braze 450 contains nickel for improved strength and wetting on tungsten carbide segments. It can also be used for brazing highly alloyed and stainless steel components. It is particularly useful on automotive parts where joint gaps may not be tightly controlled or where a corrosion resistant alloy is required.

Product Forms

  • rods
  • strip
  • rings
×
Meta-Braze Advanced Seamed Tubular Braze 1404030282-650-710BAg-28Ag 140View product info

Meta-Braze Advanced Seamed Tubular Braze 140

Meta-Braze Advanced Seamed Tubular Braze 140 combines a general-purpose brazing filler metal with a specially formulated flux core or channel. Meta-Braze 140 has medium melt and flow characteristics making it very commonly used in the brazing of tubular components such as those found in HVACR applications. This product can also be supplied in the form of a channel braze or tubular braze ring.

Product Forms

  • wire
  • strip
  • rings
×
Meta-Braze Advanced Channel Braze 1383832282-650-720BAg-34Ag 138View product info

Meta-Braze Advanced Channel Braze 138

Meta-Braze Advanced Channel Braze 138 is available with flux incorporated into the product, in a channel or central core, for repeatable and controlled brazing. Meta-Braze 138 provides a lower silver alternative to Meta-Braze 155 or 156 and conforms to AWS A5.8 BAg-34.

Product Forms

  • rods
  • strip
  • rings
×
Meta-Braze Advanced Channel Braze 230303832--680-765BAg-20Ag 230View product info

Meta-Braze Advanced Channel Braze 230

Meta-Braze Advanced Channel Braze 230 is a flux containing brazing product which has good gap filling properties and is used in applications where joint gaps are not tightly controlled. Because the flux is incorporated into the product, in a channel, this product can help to provide repeatable results and can help to minimise handling of fluxes.

Product Forms

  • wire
  • strip
  • rings
×
