Meta-Braze 155

Product Uses and Applications

The Industry Standard 55% Silver Brazing Alloy

Meta-Braze 155 is the most widely used silver brazing alloy combining low brazing temperatures with a short melting range making it free flowing and easy to use.

It can be used to braze any combination of steel, copper and tungsten carbide and is resistant to dezincification.

It is available in various forms: rod, strip, wire, foil, flux coated rods, rings, preforms, and pastes.

The recommended joint gap at brazing temperature is between 0.05-0.15mm.

Key ProductsAgCuZnSnSiMelting Range °CAWS A5.8EN1044:1999ISO 17672:2016Product Info
Meta-Braze 1555521222-630-660-AG103Ag 155View product info

Meta-Braze 155

Meta-Braze 155 is the most widely used brazing alloy combining low brazing temperatures with a short melting range making it free flowing and easy to use.

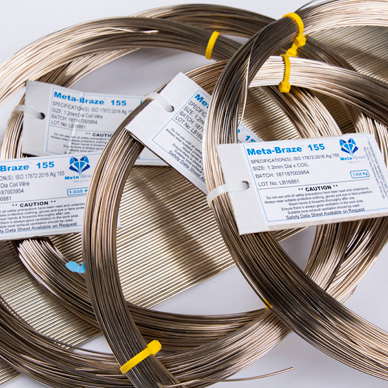

Product Forms

  • rods
  • wire
  • powder
  • foil
  • strip
  • rings
  • braze-paste
